CO2 Extraction Recovery Oil Free Co2 Compressor V Type

1.Total oil free
2.single or double stage
3.easy moving
4.heavy duty ,and 24 hours continues working 5.silent working
cooling way:
Color:
packing box:
ETD time:
Availability:
Quantity:
  • CW-30/2-65

  • BAILIAN

  • 8414804090

oil free co2 compressor refers to a compressor for pressurizing carbon dioxide gas and achieving transportation. Mainly used,

1. Recycling of dry ice volatilized gas from CO2 plant, recycling of CO2 from factory,

2. Industrial and pharmaceutical extraction processes using the liquid properties of CO2

3. Large-scale carbon dioxide compressor is mainly used in urea synthesis equipment

When co2 oil free recovery compressor extraction designing and using, it should be noted that: (1) the critical temperature of carbon dioxide is high, and it can be liquefied at 31.3 ° C and 7.14 MPa. When used in winter, the interstage cooling temperature should not be too low; (2) when carbon dioxide is below 60 MPa, it is beneficial to gas. (3) Due to the relatively high relative density of carbon dioxide gas, it is not appropriate to use an excessively large average piston speed, otherwise the gas valve resistance is high; (4) carbon dioxide gas contains a small amount of water, which is highly corrosive, so the gas valve, Coolers and buffer tanks are required to be made of stainless steel.

here is oil free extraction co2 compressor technical data

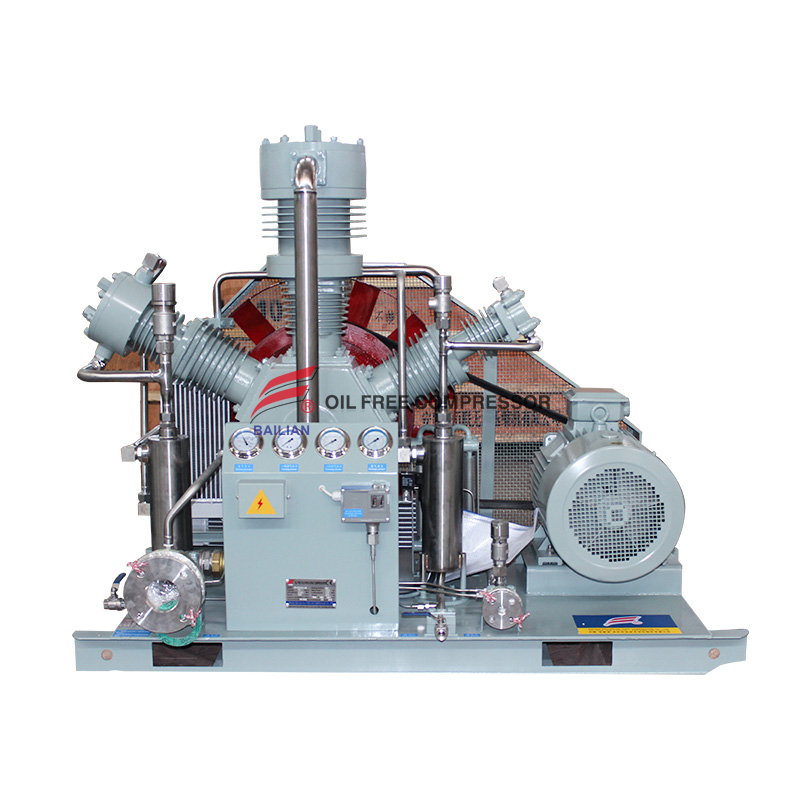

industrial reciprocating co2 compressor extraction for beer

Model  Working medium  suction pressure (Mpa,Psig) Discharge pressure (Mpa,Psig) Motor.KW  Flow rate Nm3/hr Voltage  Cooling way
CW-30/0.05-20 CO2 Atmosphere  2,287 7.5kw 30 220V/380V/415V/440V 50/60HZ air cooling
CW-30/3-30 CO2 0.3,43 3,430 7.5 30 220V/380V/415V/440V 50/60HZ air cooling
CW-30/2-65 CO2 0.2,28 6.5,935 30 11 220V/380V/415V/440V 50/60HZ air cooling
CW-30/55-80 CO2 5.5,790 8,1150 1.1 30 220V/380V/415V/440V 50/60HZ air cooling
CW-80/0.05-20 CO2 Atmosphere  2,287 18.5 80 220V/380V/415V/440V 50/60HZ water cooling
CW-105/0.2-25 CO2 0.02,3 2.5,360 30 105 220V/380V/415V/440V 50/60HZ water cooling
CW-100/0.05-20 CO2 Atmosphere  2,287 22 100 220V/380V/415V/440V 50/60HZ water cooling
CW-110/0.02-18 CO2 Atmosphere  1.8,260 30 110 220V/380V/415V/440V 50/60HZ water cooling
CW-135/0.05-20 CO2 Atmosphere  2,287 30 130 220V/380V/415V/440V 50/60HZ water cooling
CW-250/2-25 CO2 0.2,28 2.5,360 37 250 220V/380V/415V/440V 50/60HZ water cooling
CW-300/1-25 CO2 0.1,14 2.5,360 45 300 220V/380V/415V/440V 50/60HZ water cooling
CW-1200/70-150 CO2 7,1000 15,2150 55 1200 220V/380V/415V/440V 50/60HZ water cooling

1. The above parameters are for reference only, and subject to the final technical quotation

2. More displacement, higher filling pressure, please consult us
