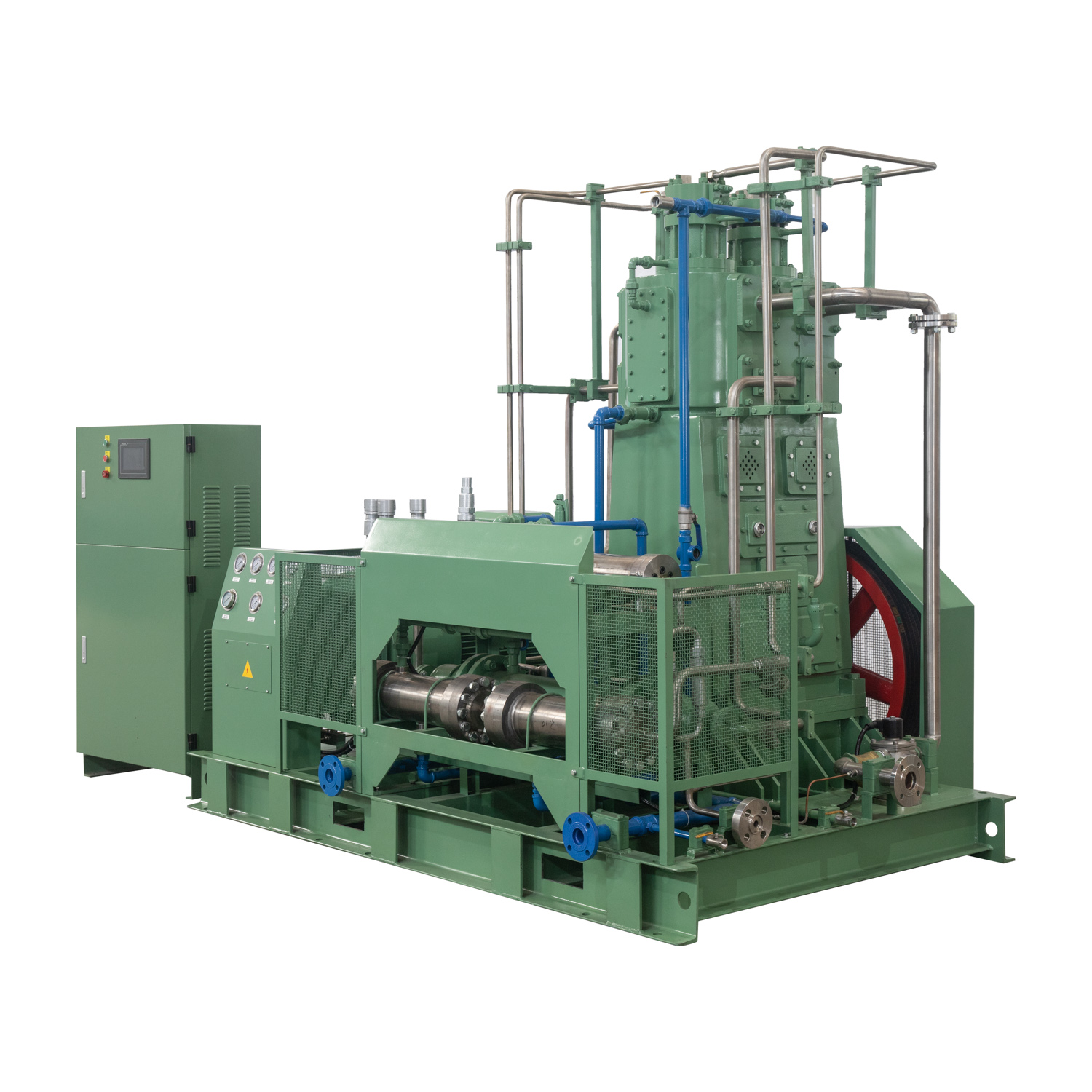

GZW-210/6-400
TECHNICAL DATA | |||||
Medium | Air | Quantity | 1 | ||
Inlet pressure MPa(G) | 0.6 | Inlet temperature ℃ | 30 | ||
Discharge pressure Mpa(G) | 40 | Discharge temperature(after cooling) ℃ | ≤ 50 | ||
Flow rate Nm3/h | 210(while inlet pressure=0.6MPa) | Piston stroke mm | 140 | ||
Mode | GZW-210/6-400 | Compression stages | 4 | ||
Structural style | Vertical oil-free skid mounted type | Cylinder quantity | 4 | ||
Shaft speed r/min | 320 ※ | Voltage V | 380 | ||
Cooling mode | Water cooling | Cooling water flow t/h | 6 | ||
Shaft power kw | ≤50 | Main motor speed r/min | 960 | ||
Motor | 55kw 380V 50Hz ※ | ||||
Dimensions mmXmmXmm | 2600*1850*2250 ※ | Weight T | 4.5 ※ | ||
Inlet and outlet dimensions | Inlet DN40、discharge DN15 | Inlet and outlet water interface | DN40 | ||
Drive mode | Coupling+reducer | ||||
Material of main components | fuselage, crankshaft | cast iron | |||
valve | stainless steel | ||||
Piston ring, guide ring | Filled with PTFE | ||||
Scope of supply | Host, motor, cooler, skid mounted chassis, starting cabinet, intake filter, safety valve, oil pump motor set, outlet companion flange, random documents, etc. | ||||
Additional notes | 1. The lubricating oil for startup should be provided by the user. 2. The data in the ※ column is for user reference, and there may be discrepancies when the machine leaves the factory. | ||||
Delivery time | 90 days after the contract is signed and the advance payment is received |
