cooling way: | |
---|---|
ETD Time: | |
Availability: | |
Quantity: | |

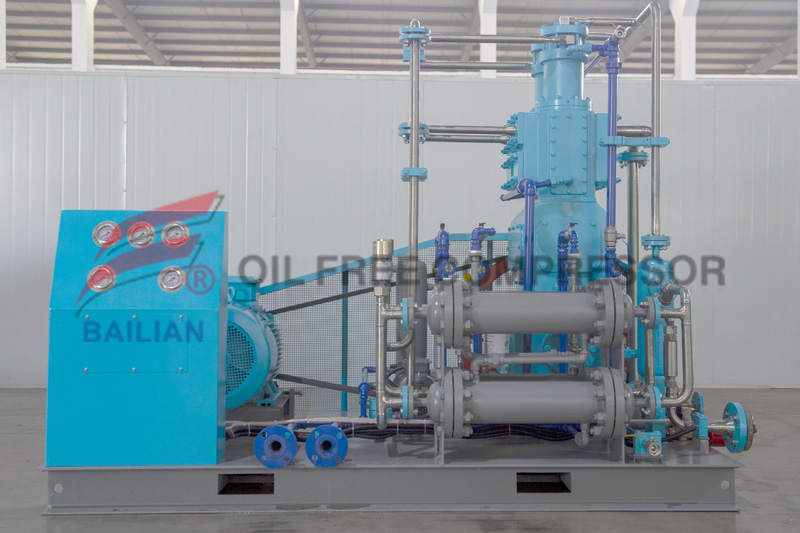

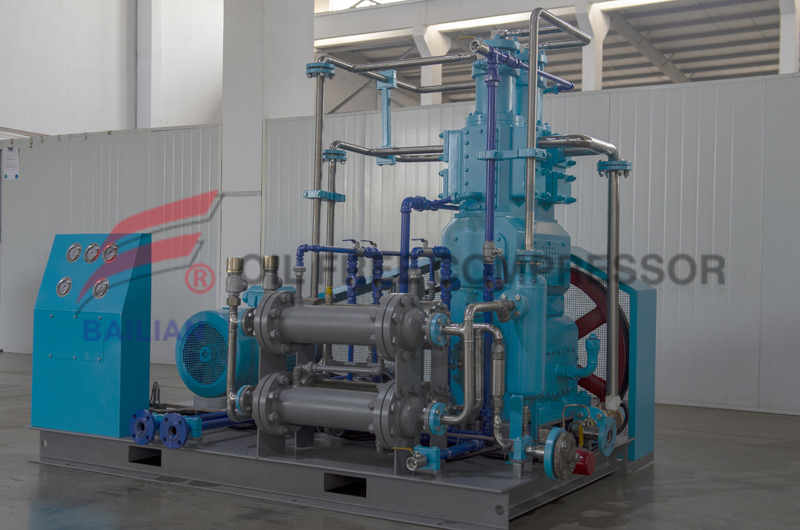

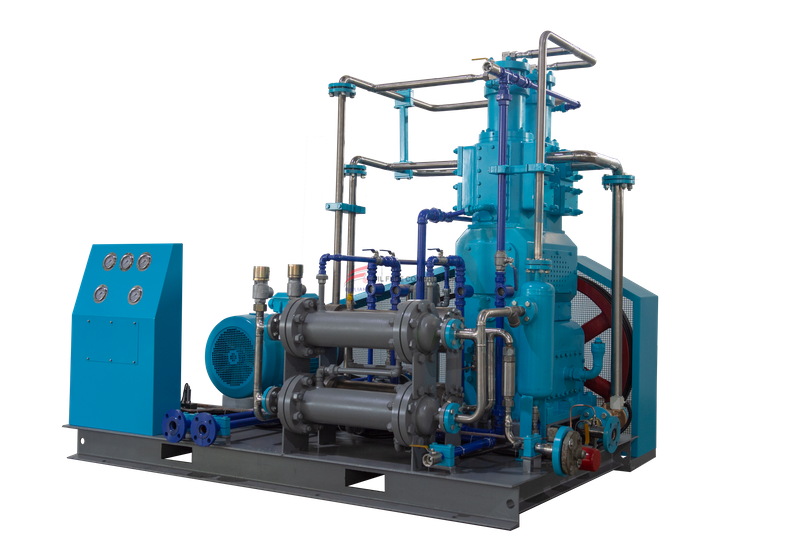

ZOW-180/0.01-25
1. Regardless of what causes the pressure drop in the pressure holding circuit, the oxygen compressor automatically starts to supplement the leakage pressure and keep the pressure in the circuit constant.
2. The oxygen compressor is powered by gas without arc and sparks, and is fully used in places with flammable and explosive liquids or gases.
3. The oxygen compressor can do the same work, but its parts and seals are less and maintenance is easy
4. The oxygen compressor pressure boost pump is a piston pump. When working, the booster pump moves quickly back and forth. When the output pressure increases, the back and forth movement of the pump slows down until it stops. At this time, the pressure of the pump is constant and the energy consumption is lowest. The parts don't move anymore.
TECHNICAL DATA | |||||
Medium | O2 | Quantity | 1 | ||
Inlet pressure MPa(G) | Micro positive pressure | Inlet temperature ℃ | 0~35 | ||
Discharge pressure Mpa(G) | 2.5 | Discharge temperature(after cooling) ℃ | ≤55 | ||
Flow rate Nm3/h | 180 | Piston stroke mm | 120 | ||
Model | ZOW-180/0.01-25 | Compression stages | 3 | ||
Structural style | Reciprocating piston vertical sled mounted type | Cylinder quantity | 4 | ||
Shaft speed r/min | 460 ※ | Voltage V | 380V50Hz | ||
Cooling mode | Water cooling | Cooling water flow t/h | 3.5 | ||
Shaft power kw | 30 | Main motor speed r/min | 1460 ※ | ||
Motor | 37kw 380V 50Hz ※ | ||||
Dimension mmXmmXmm | L2550×W1750×H2250 ※ | weight t | 2.6 ※ | ||
Interface size mm | Inlet DN100/discharge DN25/cooling warer DN40 | ||||
Drive mode | Belt drive | ||||
Main component material | frame and slide | cast iron | |||
Piston rings, packing | Filled with PTFE | ||||
Air valve and cylinder liner | Stainless steel | ||||
Scope of supply | Main engine, motor, cooler, oil pump, skid mounted chassis, starter cabinet, intake filter, primary instrument and control components, safety valve, special tools, inlet and outlet matching flanges, random documents, etc. | ||||
Additional notes | 1. Overflow components: oil and grease prohibited. 2. Lubricating oil to be provided by the user (oxygen resistant lubricating oil,~30L). 3. The column data ※ is for user reference, and there may be discrepancies when the machine leaves the factory. | ||||
Delivery time | 80 days after the contract is signed and the advance payment is received |
