CW-54/0.01-22
BAILIAN

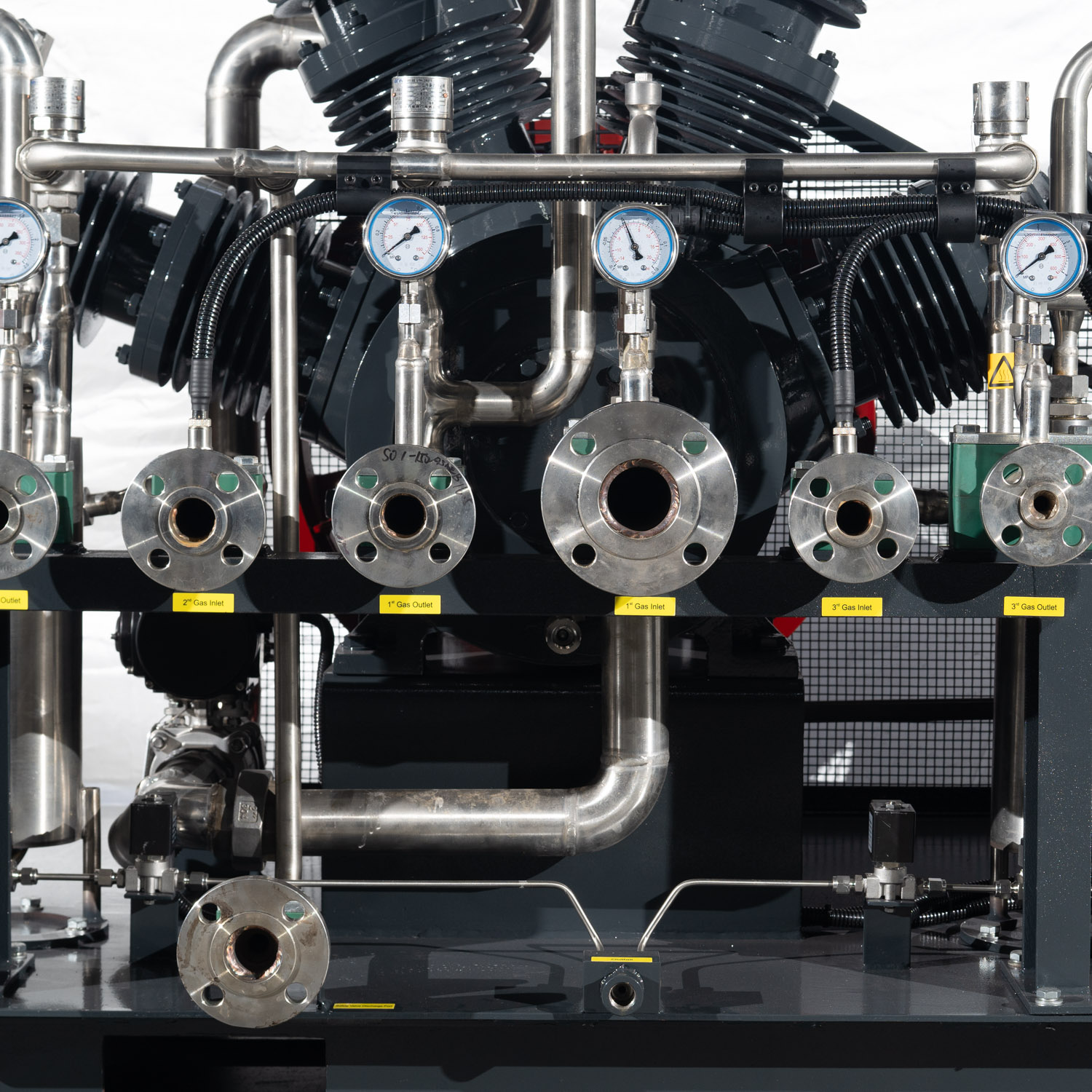

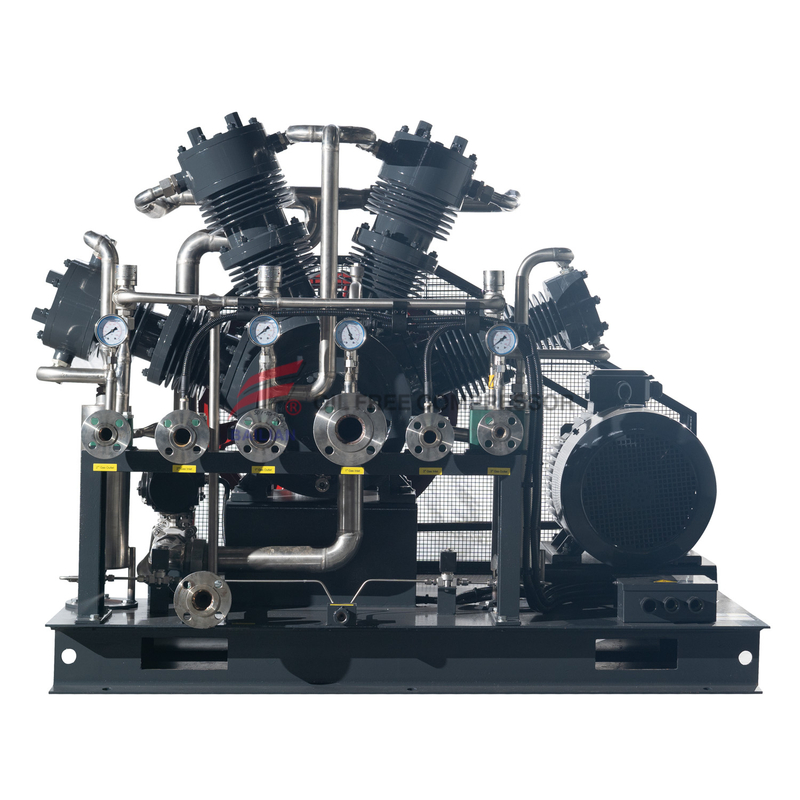

This is SW fan type oil free co2 compressor
working medium is co2( carbon dioxide) gas
flow rate is 30-60nm3/hour
Inlet pressure can be negative pressure outlet pressure is 20 or 30bar pressure
two or three stage pressure ,and four gas cylinder
The pressure bear design of the crankcase allows for a certain amount of intake negative pressure and positive intake pressure
This compressor is very popular in co2 gas recovery scope and supercritical fluid extraction scope
Project and parameters | |||
Medium | CO2 gas | Quantity | 1 |
Intake pressure MPa(G) | (-0.03~+0.09) | Inlet temperature ºC | 0~40 |
Discharge pressure Mpa(G) | 2.2 | Exhaust temperature ºC | ≤50 |
Flow rate Nm3/h | 54(@inlet atmosphere pressure) | Piston stroke mm | 90 |
Model | CW-54/0.01-22 | Compressed series | 3 |
Structural type | SW FAN sleigh mounted | Number of cylinders | 4 |
Speed of crankshaft r/min | 570 | Voltage V | 400 |
Cooling method | air cooling | Cooling water flow t/h | - |
Shaft power kw | ≤15.0 | Motor speed r/min | 1460 |
Main motor | 18.5kw 400V 50Hz | ||
Size mm | 1700×1050×1450 | Unit weight T | 0.88 |
Interface size mm | Inter DN50/Outer DN15 | ||
Driven mode | belt drive | ||
Material of main components | Gas valve, pipes, valves | stainless steel | |
Case, crankshaft | cast iron | ||
Piston ring, guide ring | filled polytetrafluoroethylene | ||
Scope of supply | Main engine, motor, cooler, skid-mounted chassis, start cabinet, air intake filter, safety valve, import and export matching flange, random documents, etc. | ||
Other matters needing attention | Bar data for user reference Mechanical seal at shaft end | ||
Deliver time | Contract signed, 40 days after the advance payment received | ||
FAQ
Q1: Can I get samples from your factory?
A: Due our compressor is high value machine ,we do not provide free sample for the customer
Q2: If products have some quality problem, how would you deal with?
A: our equipment is high quality design,few equipment has problem, in case of quality happened in the Guarantee time,we will provide parts to customer for free ,we customer can replace it by our internet technical instruction or by video instruction
Q3. Our delivery date
A:Generally, 3-10days
Q4. What is the standard of package?
A:Export plywood packing ,attached pictures
Q5. Do you accept OEM business?
A:Yes, we accept OEM business
Q6. what kind of certificate you have ?
A:We have ISO9001, CE approval
Q7.How to maintain and repair
A:Our compressors have operation and maintenance instructions, as well as maintenance and repair videos. Customers can follow the maintenance video operation and replace the accessories. If you are not sure, you can contact our online customer service staff.
Q8.Our warranty
A:For the main components of the compressor, we provide a 12-month warranty period after shipment.If the main parts are damaged under normal use, we will send you an international express to us free of charge, and the customer will complete the installation and maintenance under our guidance.The main components include: motor, crankcase, cylinder, crankshaft, connecting rod, piston, fan, bearing and other major components. Among them, wearing parts, various sealing rings, guiding rings are not included.
Q9. What is the location of your factory?
A:Our factory is located in the Anqing city Anhui Province, China.take 4hours by high speed train From Shanghai ,there is one round flight per day from shanghai to anqing city
Q10. How to solve quality problems?
A:If the compressor met quality problems ,customer will find the faulty reason by our technical person instruction ,and we offer resolution ,in the quality guarantee time ,the parts are free ,if out of warranty date ,we will charge the cost the most problems we meet is how to do maintenance for the compressor ,and normally ,for the compressor we need to replace piston ring ,guide ring ,and valve etcs ,we have compressor maintenance video to teach customer how to do it ,and customer should watch it before do the maintenance ,and also can consult our technical service person Also ,we welcome customer dispatch labor to our factory to get professional compressor repair and maintenance training.
