TZWH-60/0.8-8
BAILIAN

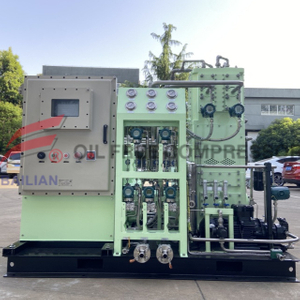

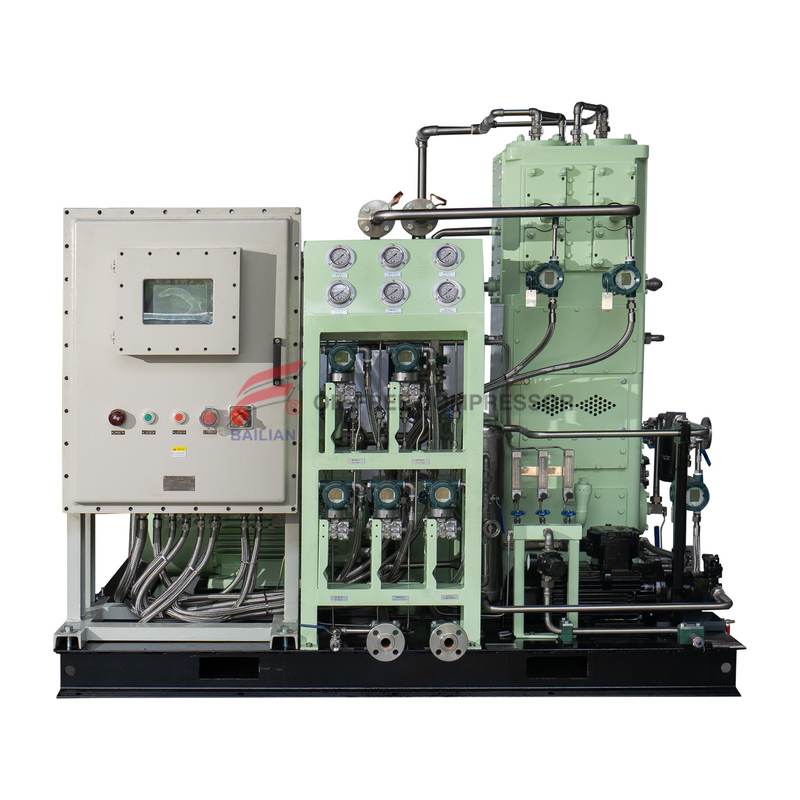

OIL FREE C2HF3 COMPRESSOR
This is vertical type oil free trifluoroethylene CAS (C2HF3) compressor
working medium is trifluoroethylene
flow rate is 60nm3/h
inlet pressure is 0.8 bar pressure ,outlet pressure is 8bar pressure
Vertical design ,and two stage pressure ,and two pcs gas cylinder
Electric control panel has each stage pressure and temperature sensor
and alarming ,and working time indicator
all the relative technical data will show it in the PLC screen
This compressor is very popular intrifluoroethylene gas factory scope
Project and parameters | |||
Medium | Trifluoroethylene, hexafluoropropylene | Quantity | 1 |
Inter pressure MPa(G) | 0.08~0.4 | Inlet temperature ºC | 0~30 |
Discharge pressure Mpa(G) | 0.8 | Discharge temperature (After cooling) ºC | ≤50ºC |
Volume flow Nm3/h | 60 (Inter pressure=0.08MPa) | Piston stroke mm | 75 |
Model | TZWH-60/0.8-8 | Compressed series | 2 |
Structural type | Double column vertical | Number of cylinders | 2 |
Speed of crankshaft r/min | 485 | Voltage V | 380 |
Cooling method | water-cooling | cooling water flow t/h | 0.3 |
Shaft power KW | ≤8.5 | Motor speed r/min | 485 |
Motor | 11kw-12pole 380V50Hz dIIBT4 | ||
Outline dimension mmXmmXmm | 2200*1500*1750 | Unit weight T | 1.5 |
Entry / exit size mm | Inter 11/2" Outer 11/2" | Water interface in and out | 1" |
Driving mode | Direct coupling | ||
Material is partly in contact with the gas | Body, crankshaft | cast iron | |
Gas valve, pipe, and cooler | stainless steel | ||
Piston ring, guide ring | filled polytetrafluoroethylene | ||
Scope of supply | Main engine, motor, cooler, control cabinet, skid-mounted chassis, air intake filter, safety valve, outlet matching flange, random file, etc. | ||
Other matters needing attention | 1, Motor brand: Sianda. Motor energy efficiency grade:> 8 grade motor without energy efficiency grade division 2, The piston rod is sealed with nitrogen to provide nitrogen gas continuously. 3, Safety valve: Yongyi. Pneumatic ball valve: KOSO (Wuxi tooling) 4, Compressor containing liquid separator and stabilizer tank, compressor no pressure vessel. 5, Electrical and paint have special requirements. Column data is for user reference | ||
FAQ
Q1: Can I get samples from your factory?
A: Due our compressor is high value machine ,we do not provide free sample for the customer
Q2: If products have some quality problem, how would you deal with?
A: our equipment is high quality design,few equipment has problem, in case of quality happened in the Guarantee time,we will provide parts to customer for free ,we customer can replace it by our internet technical instruction or by video instruction
Q3. Our delivery date
A:Generally, 3-10days
Q4. What is the standard of package?
A:Export plywood packing ,attached pictures
Q5. Do you accept OEM business?
A:Yes, we accept OEM business
Q6. what kind of certificate you have ?
A:We have ISO9001, CE approval
Q7.How to maintain and repair
A:Our compressors have operation and maintenance instructions, as well as maintenance and repair videos. Customers can follow the maintenance video operation and replace the accessories. If you are not sure, you can contact our online customer service staff.
Q8.Our warranty
A:For the main components of the compressor, we provide a 12-month warranty period after shipment.If the main parts are damaged under normal use, we will send you an international express to us free of charge, and the customer will complete the installation and maintenance under our guidance.The main components include: motor, crankcase, cylinder, crankshaft, connecting rod, piston, fan, bearing and other major components. Among them, wearing parts, various sealing rings, guiding rings are not included.
Q9. What is the location of your factory?
A:Our factory is located in the Anqing city Anhui Province, China.take 4hours by high speed train From Shanghai ,there is one round flight per day from shanghai to anqing city
Q10. How to solve quality problems?
A:If the compressor met quality problems ,customer will find the faulty reason by our technical person instruction ,and we offer resolution ,in the quality guarantee time ,the parts are free ,if out of warranty date ,we will charge the cost the most problems we meet is how to do maintenance for the compressor ,and normally ,for the compressor we need to replace piston ring ,guide ring ,and valve etcs ,we have compressor maintenance video to teach customer how to do it ,and customer should watch it before do the maintenance ,and also can consult our technical service person Also ,we welcome customer dispatch labor to our factory to get professional compressor repair and maintenance training.
