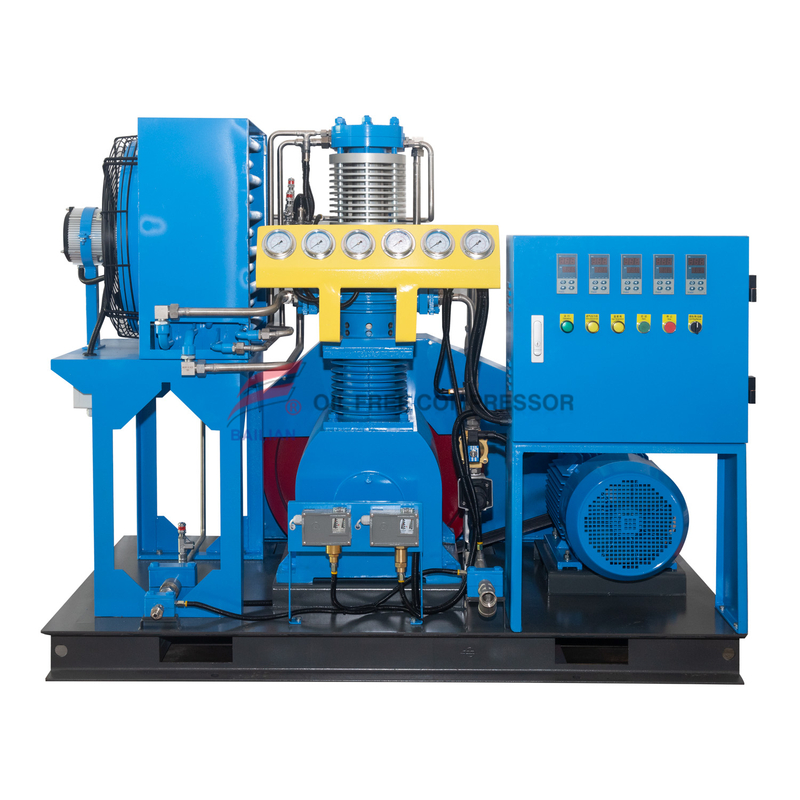

GOW-24/0.5-150
1. Regardless of what causes the pressure drop in the pressure holding circuit, the oxygen compressor automatically starts to supplement the leakage pressure and keep the pressure in the circuit constant.
2. The oxygen compressor is powered by gas without arc and sparks, and is fully used in places with flammable and explosive liquids or gases.
3. The oxygen compressor can do the same work, but its parts and seals are less and maintenance is easy
4. The oxygen compressor pressure boost pump is a piston pump. When working, the booster pump moves quickly back and forth. When the output pressure increases, the back and forth movement of the pump slows down until it stops. At this time, the pressure of the pump is constant and the energy consumption is lowest. The parts don't move anymore.
TECHNICAL DATA | |||||
Medium | O2 | Quantity | 1开 备 | ||
Inlet pressure MPa(G) | 0.05 | Inlet temperature ℃ | ≤ 40 | ||
Discharge pressure Mpa(G) | 15.0 | Discharge temperature(after cooling) ℃ | ≤ 50 | ||
Flow rate Nm3/h | 24 | Piston stroke mm | 90 | ||
Model | GOW-24/0.5-150 | Compression stages | 4 | ||
Structural style | Fully oil-free vertical lubrication | Cylinder quantity | 4 | ||
Shaft speed r/min | 300 ※ | Voltage V | 380 | ||
Cooling mode | Air cooling | Cooling water flow t/h | --- | ||
Shaft power kw | ≤10.3kw | Main motor speed r/min | 730 | ||
Inlet and outlet dimensions mm | 25、M16X1.5 | Water Inlet and outlet interfaces size mm | --- | ||
Motor | 11KW 380V 50Hz ※ | ||||
Dimensions mmXmmXmm | 1700X950X1400 ※ | Weight T | 1.2 ※ | ||
Drive mode | Belt drive | ||||
Material of parts in contact with gas | cylinder | Stainless steel | |||
valve | Stainless steel | ||||
Pipeline, cooler | Stainless steel | ||||
Scope of supply | Main engine, motor, skid mounted chassis, starting cabinet, intake filter, front primary meter and control components, safety valve, heat exchanger, random documents, random spare parts, etc. (Note: The final technical agreement shall prevail). | ||||
Additional notes | Automatic shutdown due to excessive pressure of intake and exhaust. Reminder: Dangerous gases, users must do a good job in daily security checks! | ||||
Delivery time | 40 days after the contract is signed and the advance payment is received |
