cooling way: | |
---|---|
ETD Time: | |
Availability: | |
Quantity: | |

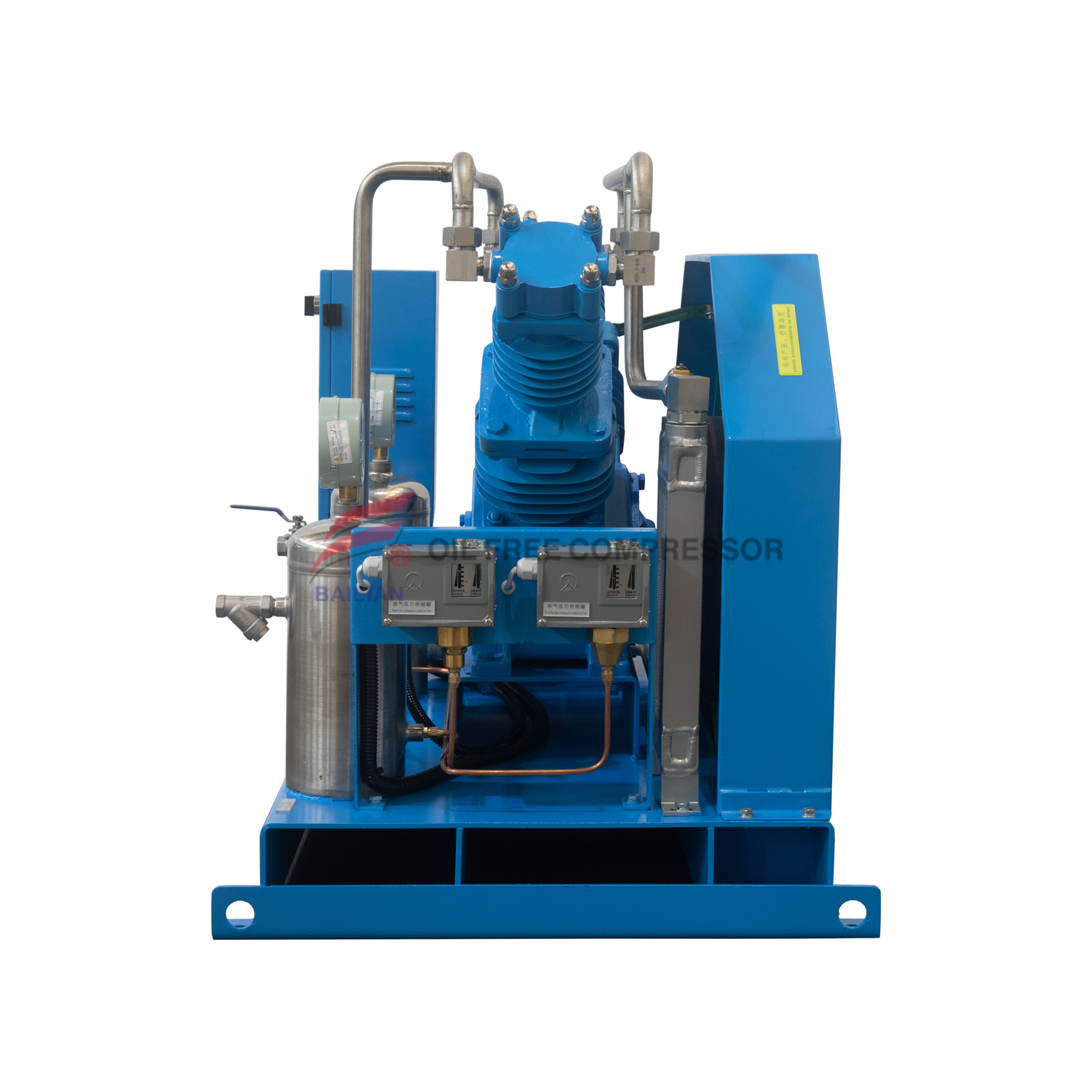

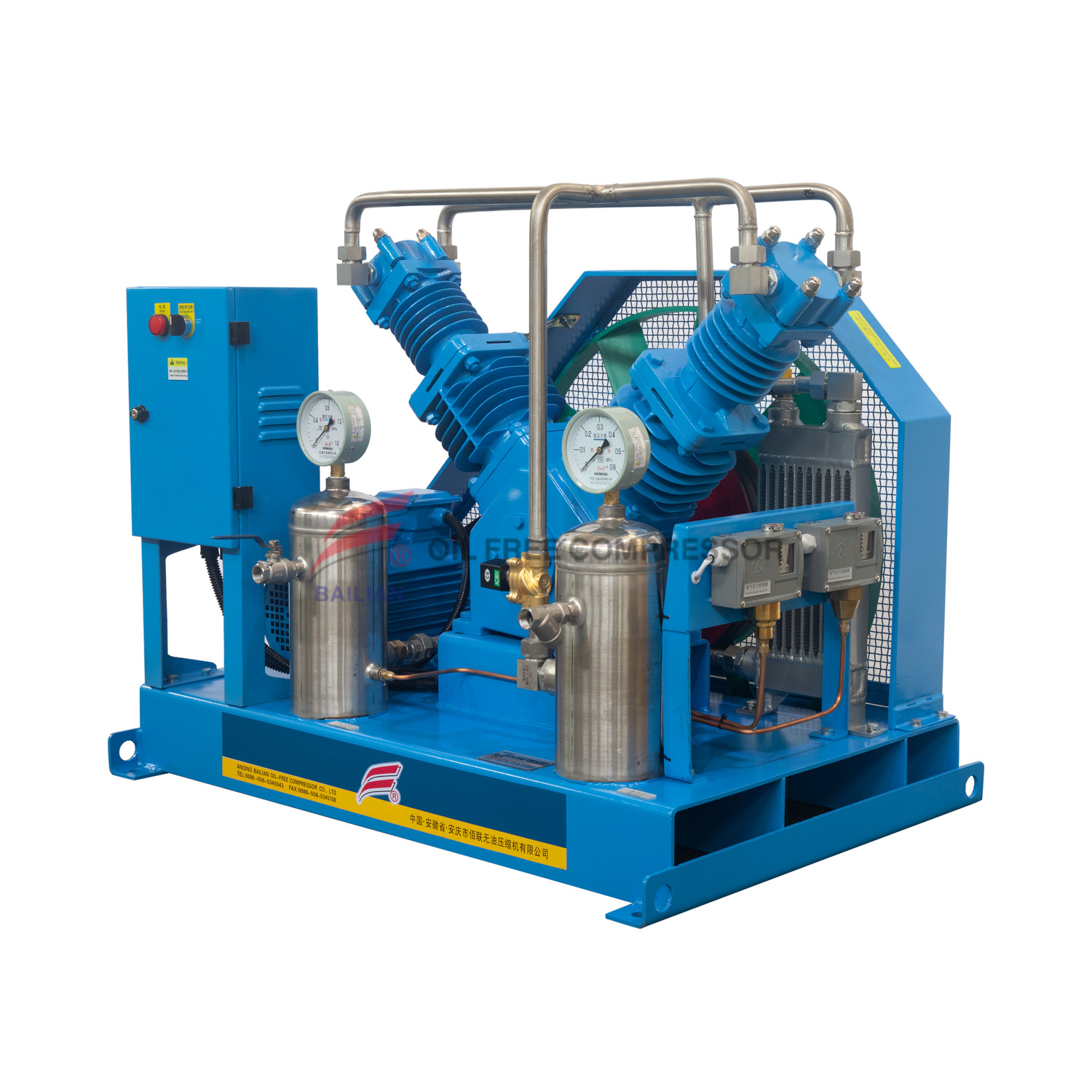

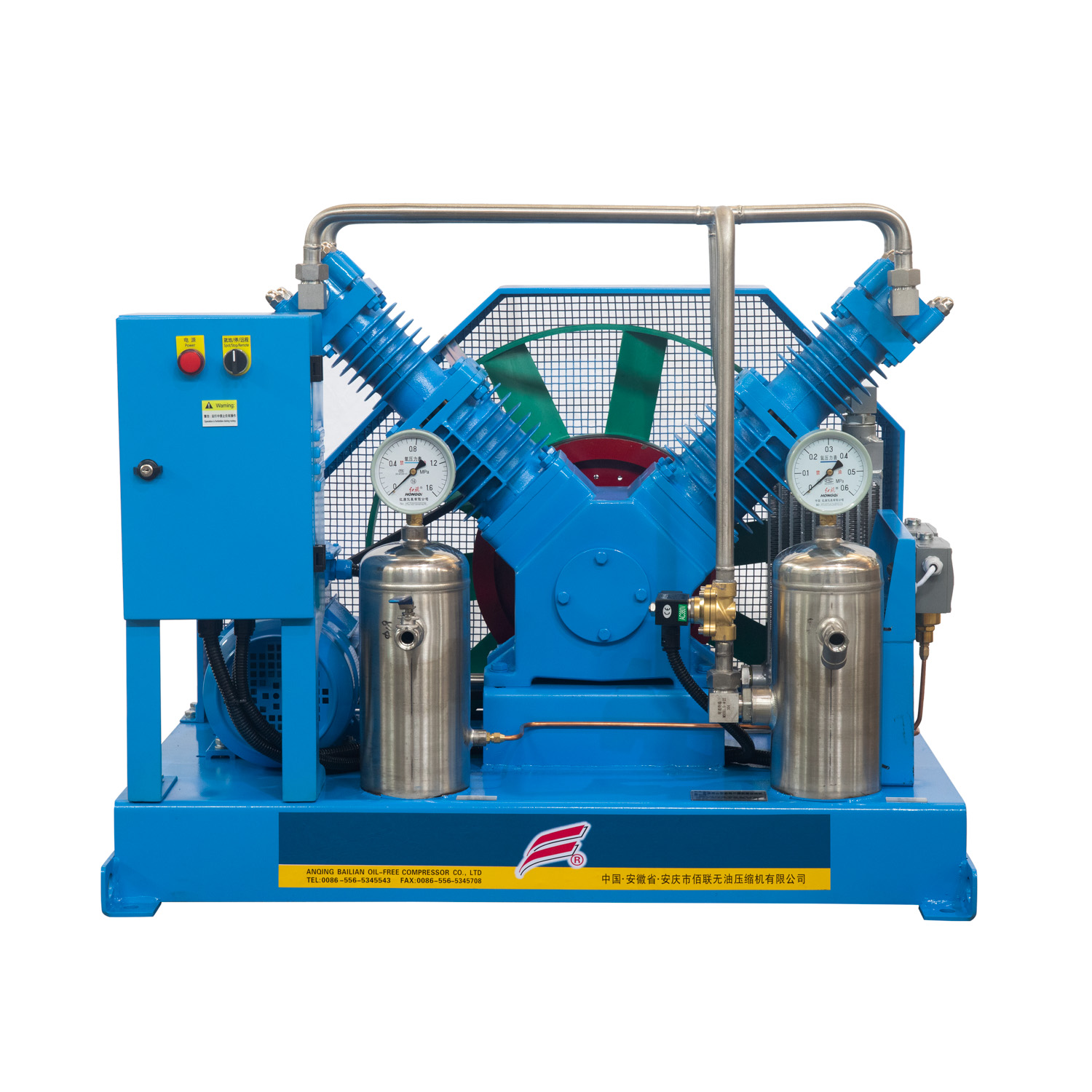

OW-30/3-21
TECHNICAL DATA | ||||
Medium | O2 | Quantity | 开 备 | |
Inlet pressure MPa(G) | 0.3 | Inlet temperature ℃ | ≤ 40 | |
Discharge pressure Mpa(G) | 2.1 | Discharge temperature(after cooling) ℃ | ≤ 50 | |
Flow rate Nm3/h | 30 | Piston stroke mm | 90 | |
Model | OW-30/3-21 | Compression stages | 2 | |
Structural style | Oil free lubrication V-type | Cylinder quantity | 2 | |
Shaft speed r/min | 620 ※ | Voltage V | 380 | |
Cooling mode | Air cooling | Cooling water flow t/h | -- | |
Shaft power kw | ≤4kw | Main motor speed r/min | 1440 | |
Air inlet port mm | 20、15 | Inlet and outlet interfaces mm | --- | |
Motor | 5.5KW 380V 50Hz ※ | |||
Dimensions mmXmmXmm | 1600*800*1100 ※ | weight T | 0.44 ※ | |
Drive mode | Belt drive | |||
Material of parts in contact with gas | cylinder | Stainless steel | ||
Air valve | Stainless steel | |||
Pipeline, cooler | Stainless steel | |||
Scope of supply | Main engine, motor, skid mounted chassis, starting cabinet, air inlet filter, primary meter and control elements in front of the machine, safety valve, accompanying documents, accompanying spare parts, etc. (Note: the final technical agreement shall prevail) | |||
Additional notes | Tip: for dangerous gases, users must do a good job of daily security inspection! The intake and exhaust pressure protection automatically starts and stops. | |||
Delivery time | 30 days after the contract is signed and the advance payment is received |
TECHNICAL DATA | ||||
Medium | O2 | Quantity | 开 备 | |
Inlet pressure MPa(G) | 0.3 | Inlet temperature ℃ | ≤ 40 | |
Discharge pressure Mpa(G) | 2.1 | Discharge temperature(after cooling) ℃ | ≤ 50 | |
Flow rate Nm3/h | 30 | Piston stroke mm | 90 | |
Model | OW-30/3-21 | Compression stages | 2 | |
Structural style | Oil free lubrication V-type | Cylinder quantity | 2 | |
Shaft speed r/min | 620 ※ | Voltage V | 380 | |
Cooling mode | Air cooling | Cooling water flow t/h | -- | |
Shaft power kw | ≤4kw | Main motor speed r/min | 1440 | |
Air inlet port mm | 20、15 | Inlet and outlet interfaces mm | --- | |
Motor | 5.5KW 380V 50Hz ※ | |||
Dimensions mmXmmXmm | 1600*800*1100 ※ | weight T | 0.44 ※ | |
Drive mode | Belt drive | |||
Material of parts in contact with gas | cylinder | Stainless steel | ||
Air valve | Stainless steel | |||
Pipeline, cooler | Stainless steel | |||
Scope of supply | Main engine, motor, skid mounted chassis, starting cabinet, air inlet filter, primary meter and control elements in front of the machine, safety valve, accompanying documents, accompanying spare parts, etc. (Note: the final technical agreement shall prevail) | |||
Additional notes | Tip: for dangerous gases, users must do a good job of daily security inspection! The intake and exhaust pressure protection automatically starts and stops. | |||
Delivery time | 30 days after the contract is signed and the advance payment is received |
