2VCW-30/0.6-34.5
BAILIAN

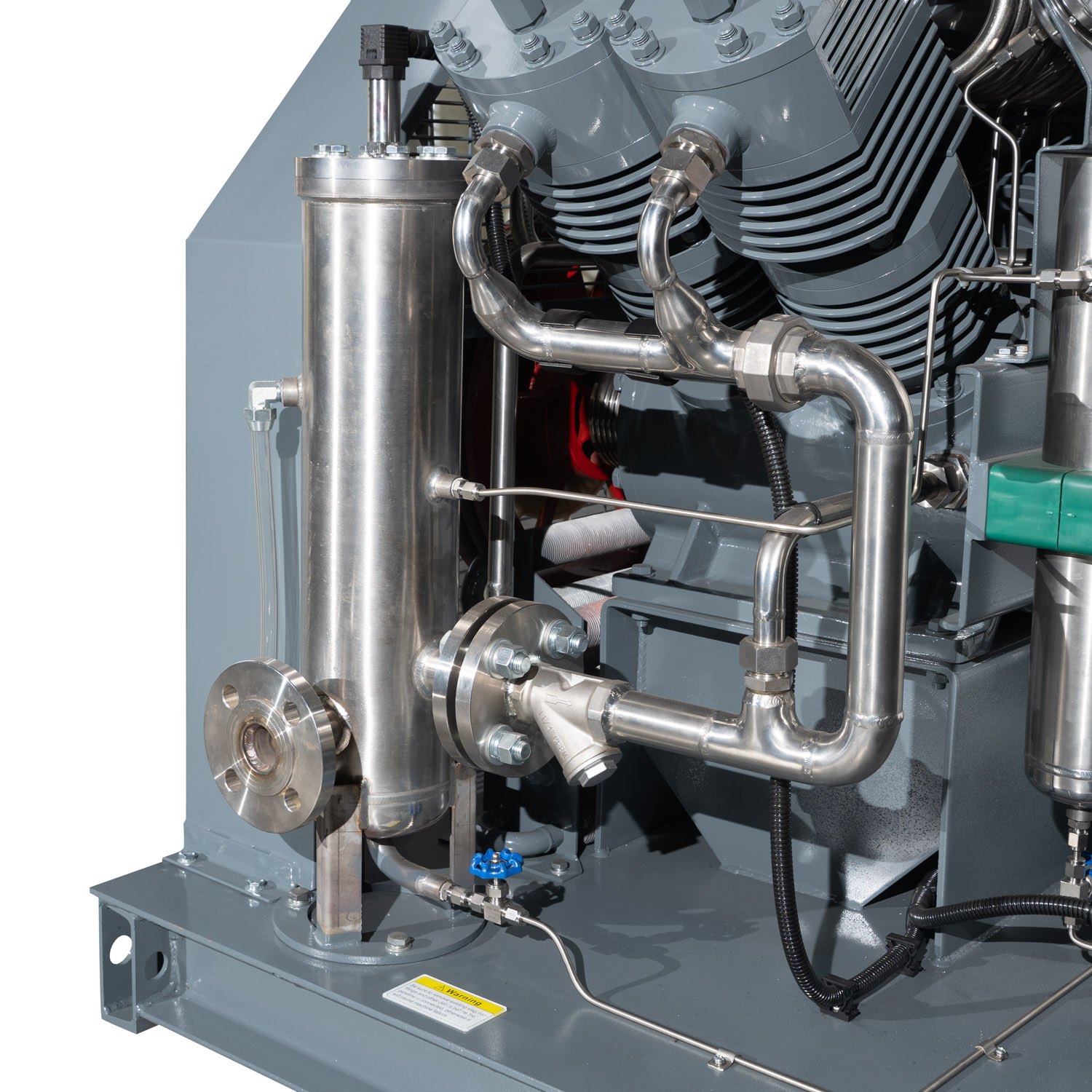

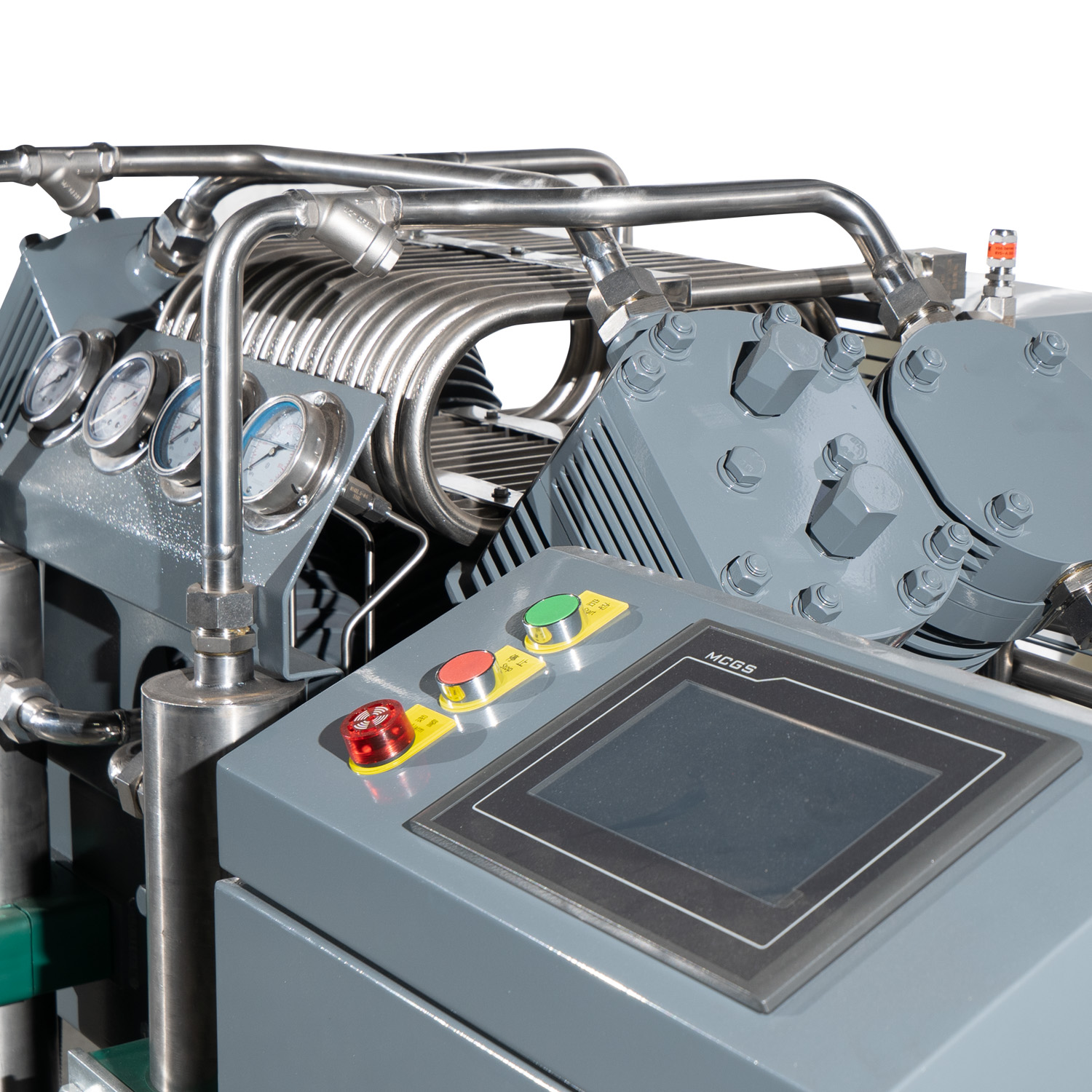

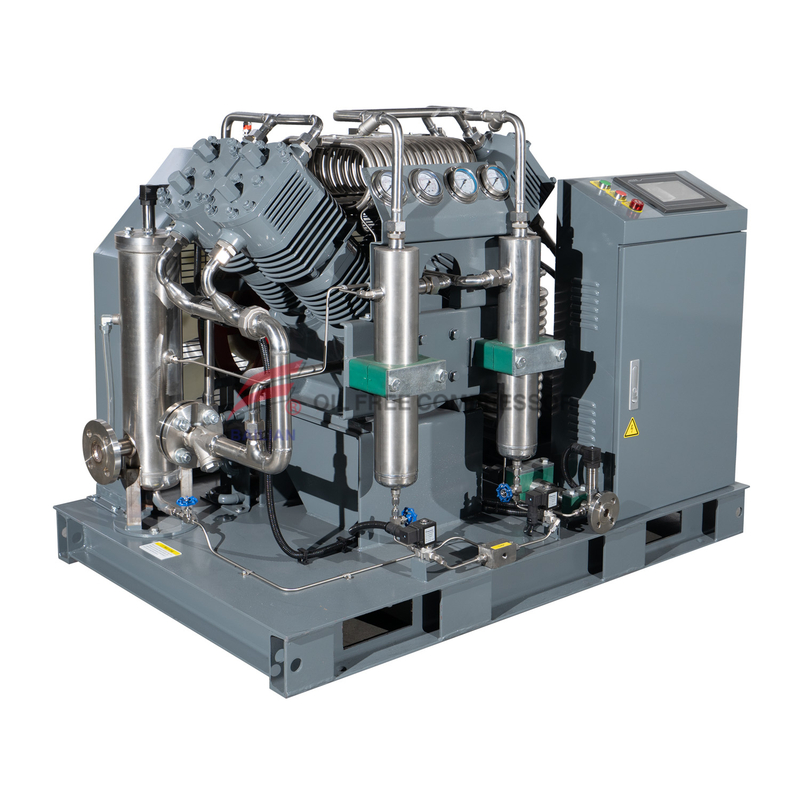

30NM3 OIL FREE CO2 COMPRESSOR
This is 2VW type oil free co2 compressor
working medium is co2( carbon dioxide) gas
flow rate is 20-40nm3/hour
Inlet pressure is micro positive pressure, outlet pressure is 30-40bar pressure,two stage pressure ,and four gas cylinder
This machine is designed according to the latest technological aesthetics and adopts a double V-shaped cylinder structure. The machine operates with low vibration and scientific and reasonable heat dissipation,
This compressor is very popular in co2 gas recovery scope and supercritical fluid extraction scope
Project and parameters | |||||
Medium | CO2 Mixed gas | Quantity | 1 | ||
Inter pressure MPa(G) | 0.06 | Inlet temperature ºC | 0~40 | ||
Discharge pressure Mpa(G) | 3.45 | Discharge temperature (After cooling) ºC | ≤55 | ||
Volume flow Nm3/h | 30(Inter pressure=0.06MPa) | Piston stroke mm | 75 | ||
Model | 2VCW-30/0.6-34.5 | Compressed series | 3 | ||
Structural type | V type pry type | Number of cylinders | 4 | ||
Speed of crankshaft r/min | 460 | Voltage V | 380 | ||
Cooling method | air cooling | cooling water flow t/h | --- | ||
Shaft power KW | 5.5 | Motor speed r/min | 1700 | ||
Motor | 7.5kw 380V 50Hz | ||||
Outline dimension mmXmmXmm | L1500×W850×H1150 | Unit weight t | 0.78 | ||
Entry / exit size mm | DN32/DN15 | Into / out water interface mm | ----- | ||
Driving mode | Triangular belt | ||||
Material is partly in contact with the gas | Body, crankshaft | cast iron | |||
Gas valve, cylinder head | stainless steel | ||||
Piston ring, guide ring | filled polytetrafluoroethylene | ||||
Scope of supply | Main engine, motor, cooler, separator, skid-mounted chassis, start cabinet, air intake filter, safety valve, random file, etc. | ||||
Other matters needing attention | Column data is for user reference Standard configuration: 1,Motor (Luv-electric or equivalent) 2,Safety valve (Zhejiang Wanneng) 3,Solenoid valve (Zhejiang Sanlixin) 4,Pressure gauge (Nanjing Zhipu or equivalent) 5,Pressure controller / pressure transmitter (Changzhou Tianli) 6,Electrical components (Chnt) | ||||
Delivery time | Contract signing, 60 working days after the advance payment to the account | ||||
Price | Offer validity | 3 months | |||
FAQ
Q1: Can I get samples from your factory?
A: Due our compressor is high value machine ,we do not provide free sample for the customer
Q2: If products have some quality problem, how would you deal with?
A: our equipment is high quality design,few equipment has problem, in case of quality happened in the Guarantee time,we will provide parts to customer for free ,we customer can replace it by our internet technical instruction or by video instruction
Q3. Our delivery date
A:Generally, 3-10days
Q4. What is the standard of package?
A:Export plywood packing ,attached pictures
Q5. Do you accept OEM business?
A:Yes, we accept OEM business
Q6. what kind of certificate you have ?
A:We have ISO9001, CE approval
Q7.How to maintain and repair
A:Our compressors have operation and maintenance instructions, as well as maintenance and repair videos. Customers can follow the maintenance video operation and replace the accessories. If you are not sure, you can contact our online customer service staff.
Q8.Our warranty
A:For the main components of the compressor, we provide a 12-month warranty period after shipment.If the main parts are damaged under normal use, we will send you an international express to us free of charge, and the customer will complete the installation and maintenance under our guidance.The main components include: motor, crankcase, cylinder, crankshaft, connecting rod, piston, fan, bearing and other major components. Among them, wearing parts, various sealing rings, guiding rings are not included.
Q9. What is the location of your factory?
A:Our factory is located in the Anqing city Anhui Province, China.take 4hours by high speed train From Shanghai ,there is one round flight per day from shanghai to anqing city
Q10. How to solve quality problems?
A:If the compressor met quality problems ,customer will find the faulty reason by our technical person instruction ,and we offer resolution ,in the quality guarantee time ,the parts are free ,if out of warranty date ,we will charge the cost the most problems we meet is how to do maintenance for the compressor ,and normally ,for the compressor we need to replace piston ring ,guide ring ,and valve etcs ,we have compressor maintenance video to teach customer how to do it ,and customer should watch it before do the maintenance ,and also can consult our technical service person Also ,we welcome customer dispatch labor to our factory to get professional compressor repair and maintenance training.
